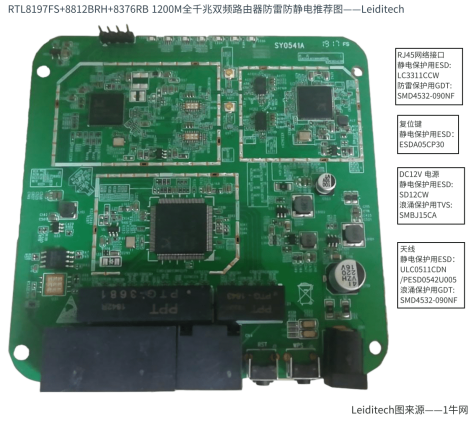

RTL8197FS+8812BRH+8376RB 1200M全千兆双频路由器
RTL8197FS+8812BRH+8376RB 1200M全千兆双频路由器
一、应用场合
千兆双频路由器
二、产品参数
|
Hardware Specifications |
|||
|
Features |
Instructions |
||
|
CPU |
RTL8197FS+8812BRH+8376RB |
||
|
Ethernet |
IEEE802.3u MDI / MDIX 10/100/1000 |
||
|
Wireless |
IEEE 802.11b/g/n/ac |
||
|
Memory |
128Mbyte |
||
|
FLASH |
16Mbyte |
||
|
Power |
DC12V/1A |
||
|
Wireless Rate |
2.4G：300M 5G：867M |
||
|
Gain |
2dBi |
||
|
Ethernet interface |
1 *10/100M/1000M Auto MDI/MDIX RJ45 WAN port 2 *10/100M/1000M Auto MDI/MDIX RJ45 LAN port |
||
|
Button |
1 *Reset 1 *WPS |
||
|
System Upgrade |
Through the web site upgrade; |
||
|
LED |
Power/ 5.8g/ 2.4g/ WAN/ LAN1/LAN0/ WPS |
||
|
Power consumption |
≦ 8W |
||
|
RF Power @25℃ |
802.11b |
11Mbps |
18 ± 2dBm |
|
802.11g |
54Mbps |
15 ± 2dBm |
|
|
802.11n |
300Mbps |
15 ± 2dBm |
|
|
802.11ac |
867Mbps |
20± 2dBm |
|
|
|
|
|
|
|
Receiver sensitivity @25℃ |
802.11b |
11Mbps |
-90 dBm |
|
802.11g |
54Mbps |
-72 dBm |
|
|
802.11n |
300Mbps |
-68 dBm |
|
|
802.11ac |
867Mbps |
-58 dBm |
|
|
Mechanical Specifications |
|||
|
Features |
Instructions |
||
|
PCBA Size |
100 (Long) × 99(Wide) mm |
||
|
Weight |
≦100g |
||
|
Sealing |
Neutral can be customized |
||
|
Environmental specifications |
|||
|
Features |
Instructions |
||
|
Working Temperature |
-20~+55°C |
||
|
Working Humidity |
10%~95% RH |
||
|
Storage Temperature |
-40~+85°C |
||
|
Storage Humidity |
10%~95% RH |
||
